Grooved mechanical tee
Grooved mechanical tee
Grooved mechanical tee
Grooved mechanical tee
Grooved mechanical tee
Grooved mechanical tee
Grooved mechanical tee
Grooved mechanical tee
Grooved mechanical tee
Grooved mechanical tee
Grooved mechanical tee

Grooved mechanical tees are widely used to connect main pipes and branch pipes in fire protection system, potable water supply system, municipal construction, mine, chemical factory and other occasions when steel pipes used.

Material of body: ductile cast iron (ASTM A536, Grade: 65-45-12)

Material of gasket: EPDM, NBR, silicon rubber

Standard: UL213

Working pressure: 2.07MPa / 300PSI

Surface treatment: electrostatic powder coating, galvanization.

Colors: RAL3000, blue or as customized.

All sizes are UL listed and FM approved

Inquiry

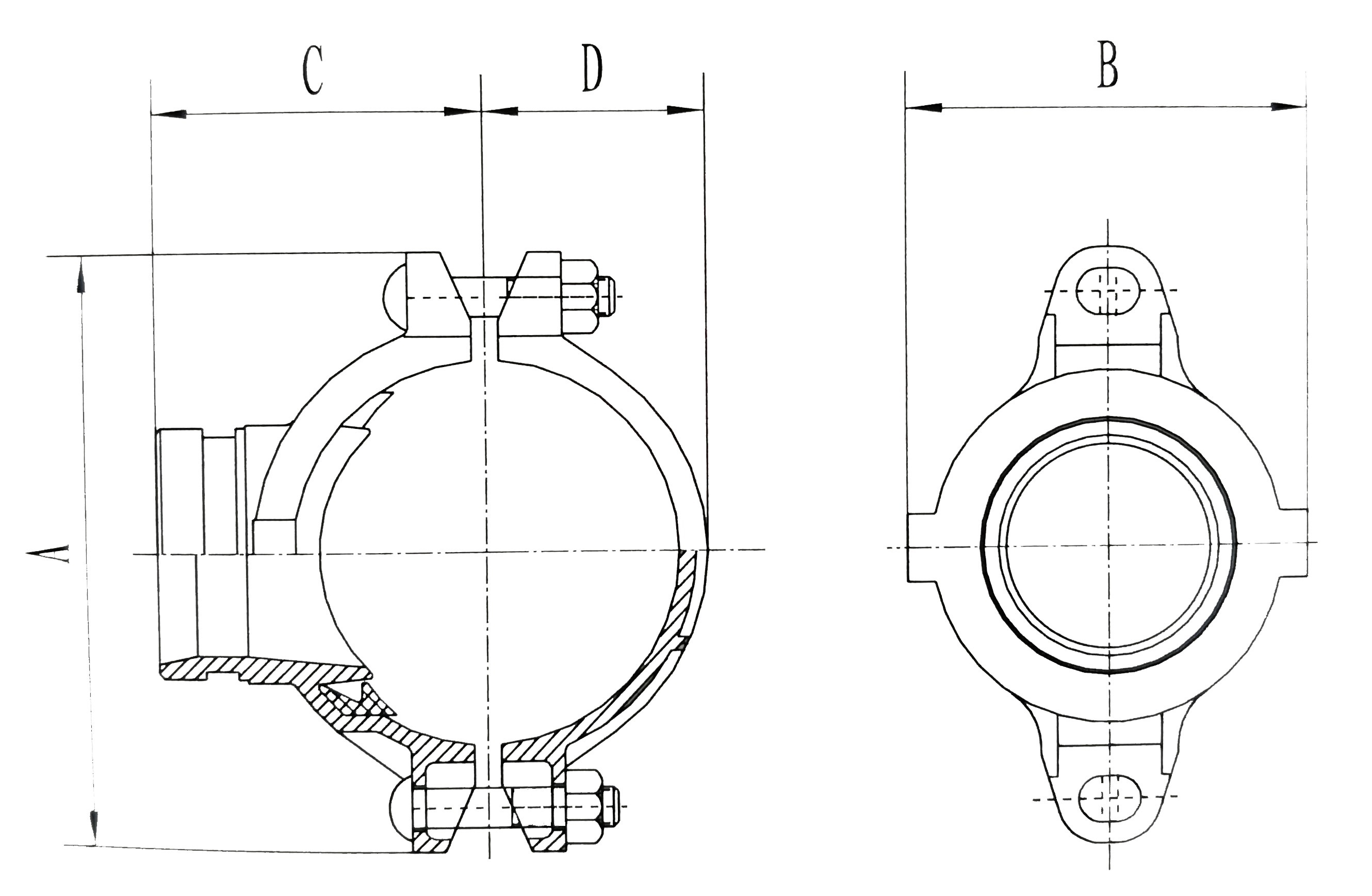

Nominal size  Pipe OD Working PressureHole dia   Product  Dimension (inch / mm)    Bolt/Nut
   inch / mm inch / mm   PSI / MPainch/mmAB CD
2 x 1
50 x 25		2.375 x 1.315
60.3 x 33.7		300
2.07		1.5
38		4.64
118		2.8
71		2.71
69		1.57
40		3/8*55
2 x 1 1/4
50 x 32		2.375 x 1.660
60.3 x 42.4		300
2.07		1.81
46		4.64
118		2.95
75		2.71
69		1.57
40		3/8*55
2 x 1 1/2
50 x 40		2.375 x 1.900
60.3 x 48.3		300
2.07		1.81
46		4.64
118		2.95
75		4.488
114		1.57
40		3/8*55
2 1/2 x 1
65 x 25		2.875 x 1.315
73 x 33.7		300
2.07		1.5
38		5.23
133		2.83
72		3.03
77		1.85
47		3/8*55
2 1/2 x 1 1/4
65 x 32		2.875 x 1.660
73 x 42.4		300
2.07		1.81
46		5.23
133		3.18
81		3.03
77		1.85
47		3/8*55
2 1/2 x 1 1/2
65 x 40		2.875 x 1.900
73 x 48.3		300
2.07		2.08
53		5.23
133		3.38
86		3.03
77		1.85
47		3/8*55
3 x 1
80 x 25		3.5 x 1.315
88.9 x 33.7		300
2.07		1.5
38		5.9
150		2.87
73		3.33
85		2.2
56		3/8*55
3 x 1 1/4
80 x 32		3.5 x 1.660
88.9 x 42.4		300
2.07		1.81
46		5.9
150		3.22
82		3.33
85		2.2
56		3/8*55
3 x 1 1/2
80 x 40		3.5 x 1.9
88.9 x 48.3		300
2.07		2.08
53		5.9
150		3.42
87		3.33
85		2.2
56		3/8*55
3 x 2
80 x 50		3.5 x 2.375
88.9 x 60.3		300
2.07		2.4
61		5.9
150		3.93
100		3.33
85		2.2
56		3/8*55
3 x 2 1/2
80 x 65		3.5 x 2.875
88.9 x 73		300
2.07		2.4
61		5.9
150		3.93
100		3.33
85		2.2
56		3/8*55
4 x 1
100 x 25		4.5 x 1..315
114.3 x 33.7		300
2.07		1.5
38		7.16
182		2.87
73		3.9
99		2.76
70		1/2*65
4 x 1 1/4
100 x 32		4.5 x 1.66
114.3 x 42.4		300
2.07		1.81
46		7.16
182		3.22
82		3.9
99		2.76
70		1/2*65
4 x 1 1/2
100 x 40		4.5 x 1.9
114.3 x 48.3		300
2.07		2.08
53		7.16
182		3.42
87		3.9
99		2.76
70		1/2*65
4 x 2
100 x 50		4.5 x 2.375
114.3 x 60.3		300
2.07		2.4
61		7.16
182		3.93
100		3.9
99		2.76
70		1/2*65
4 x 2 1/2
100 x 65		4.5 x 2.875
114.3 x 73		300
2.07		3.18
81		7.16
182		4.64
118		3.9
99		2.76
70		1/2*65
4 x 3
100 x 80		4.5 x 3.5
114.3 x 88.9		300
2.07		3.38
86		7.16
182		4.88
124		3.9
99		2.76
70		1/2*65
5 x 2
125 x 50		5.563 x 2.375
141.3 x 60.3		300
2.07		2.4
61		8.46
215		4.01
102		4.48
114		3.26
83		1/2*75
5 x 3
125 x 80		5.563 x 3.5
141.3 x 88.9		300
2.07		3.38
86		8.46
215		5.27
134		4.48
114		3.26
83		1/2*75
5 x 4
125 x 100		5.563 x 4.5
141.3 x 114.3		300
2.07		4.48
114		8.46
215		6.22
158		4.52
115		3.26
83		1/2*75
6 x 2
150 x 50		6.625 x 2.375
168.3 x 60.3		300
2.07		2.4
61		9.6
244		4.01
102		5.04
128		3.81
97		9/16*75
6 x 2 1/2
150 x 65		6.625 x 2.875
168.3 x 73		300
2.07		3.18
81		9.6
244		4.68
119		5.04
128		3.81
97		9/16*75
6 x 3
150 x 80		6.625 x 3.50
168.3 x 88.9		300
2.07		3.38
86		9.6
244		5.27
134		5.04
128		3.81
97		9/16*75
6 x 4
150 x 100		6.625 x 4.5
168.3 x 114.3		300
2.07		4.48
114		9.6
244		6.22
158		5.11
130		3.81
97		9/16*75
8 x 2
200 x 50		8.625 x 2.375
219.1 x 60.3		300
2.07		2.4
61		12.12
308		4.01
102		6.02
153		4.88
124		5/8*95
8 x 3
200 x 80		8.625 x 3.5
219.1 x 88.9		300
2.07		3.38
86		12.12
308		5.27
134		6.02
153		4.88
124		5/8*95
8 x 4
200 x 100		8.625 x 4.5
219.1 x 114.3		300
2.07		4.48
114		12.12
308		6.22
158		6.1
155		4.88
124		5/8*95


Nominal size  Pipe OD Working PressureHole dia   Product  Dimension (inch / mm)    Bolt/Nut
   inch / mm inch / mm   PSI / MPainch/mmAB CD
2 x 1
50 x 25		2.375 x 1.315
60.3 x 33.7		300
2.07		1.5
38		4.64
118		2.8
71		2.71
69		1.57
40		3/8*55
2 x 1 1/4
50 x 32		2.375 x 1.660
60.3 x 42.4		300
2.07		1.81
46		4.64
118		2.95
75		2.71
69		1.57
40		3/8*55
2 x 1 1/2
50 x 40		2.375 x 1.900
60.3 x 48.3		300
2.07		1.81
46		4.64
118		2.95
75		4.488
114		1.57
40		3/8*55
2 1/2 x 1
65 x 25		2.875 x 1.315
73 x 33.7		300
2.07		1.5
38		5.23
133		2.83
72		3.03
77		1.85
47		3/8*55
2 1/2 x 1 1/4
65 x 32		2.875 x 1.660
73 x 42.4		300
2.07		1.81
46		5.23
133		3.18
81		3.03
77		1.85
47		3/8*55
2 1/2 x 1 1/2
65 x 40		2.875 x 1.900
73 x 48.3		300
2.07		2.08
53		5.23
133		3.38
86		3.03
77		1.85
47		3/8*55
3 x 1
80 x 25		3.5 x 1.315
88.9 x 33.7		300
2.07		1.5
38		5.9
150		2.87
73		3.33
85		2.2
56		3/8*55
3 x 1 1/4
80 x 32		3.5 x 1.660
88.9 x 42.4		300
2.07		1.81
46		5.9
150		3.22
82		3.33
85		2.2
56		3/8*55
3 x 1 1/2
80 x 40		3.5 x 1.9
88.9 x 48.3		300
2.07		2.08
53		5.9
150		3.42
87		3.33
85		2.2
56		3/8*55
3 x 2
80 x 50		3.5 x 2.375
88.9 x 60.3		300
2.07		2.4
61		5.9
150		3.93
100		3.33
85		2.2
56		3/8*55
3 x 2 1/2
80 x 65		3.5 x 2.875
88.9 x 73		300
2.07		2.4
61		5.9
150		3.93
100		3.33
85		2.2
56		3/8*55
4 x 1
100 x 25		4.5 x 1..315
114.3 x 33.7		300
2.07		1.5
38		7.16
182		2.87
73		3.9
99		2.76
70		1/2*65
4 x 1 1/4
100 x 32		4.5 x 1.66
114.3 x 42.4		300
2.07		1.81
46		7.16
182		3.22
82		3.9
99		2.76
70		1/2*65
4 x 1 1/2
100 x 40		4.5 x 1.9
114.3 x 48.3		300
2.07		2.08
53		7.16
182		3.42
87		3.9
99		2.76
70		1/2*65
4 x 2
100 x 50		4.5 x 2.375
114.3 x 60.3		300
2.07		2.4
61		7.16
182		3.93
100		3.9
99		2.76
70		1/2*65
4 x 2 1/2
100 x 65		4.5 x 2.875
114.3 x 73		300
2.07		3.18
81		7.16
182		4.64
118		3.9
99		2.76
70		1/2*65
4 x 3
100 x 80		4.5 x 3.5
114.3 x 88.9		300
2.07		3.38
86		7.16
182		4.88
124		3.9
99		2.76
70		1/2*65
5 x 2
125 x 50		5.563 x 2.375
141.3 x 60.3		300
2.07		2.4
61		8.46
215		4.01
102		4.48
114		3.26
83		1/2*75
5 x 3
125 x 80		5.563 x 3.5
141.3 x 88.9		300
2.07		3.38
86		8.46
215		5.27
134		4.48
114		3.26
83		1/2*75
5 x 4
125 x 100		5.563 x 4.5
141.3 x 114.3		300
2.07		4.48
114		8.46
215		6.22
158		4.52
115		3.26
83		1/2*75
6 x 2
150 x 50		6.625 x 2.375
168.3 x 60.3		300
2.07		2.4
61		9.6
244		4.01
102		5.04
128		3.81
97		9/16*75
6 x 2 1/2
150 x 65		6.625 x 2.875
168.3 x 73		300
2.07		3.18
81		9.6
244		4.68
119		5.04
128		3.81
97		9/16*75
6 x 3
150 x 80		6.625 x 3.50
168.3 x 88.9		300
2.07		3.38
86		9.6
244		5.27
134		5.04
128		3.81
97		9/16*75
6 x 4
150 x 100		6.625 x 4.5
168.3 x 114.3		300
2.07		4.48
114		9.6
244		6.22
158		5.11
130		3.81
97		9/16*75
8 x 2
200 x 50		8.625 x 2.375
219.1 x 60.3		300
2.07		2.4
61		12.12
308		4.01
102		6.02
153		4.88
124		5/8*95
8 x 3
200 x 80		8.625 x 3.5
219.1 x 88.9		300
2.07		3.38
86		12.12
308		5.27
134		6.02
153		4.88
124		5/8*95
8 x 4
200 x 100		8.625 x 4.5
219.1 x 114.3		300
2.07		4.48
114		12.12
308		6.22
158		6.1
155		4.88
124		5/8*95
