Grooved flexible couplings are widely used to connect steel pipes for fire protection system, potable water supply system, municipal construction, mine, chemical factory and other occasions when steel pipes used.
Material of body: ductile cast iron (ASTM A536,Grade: 65-45-12)
Material of gasket: EPDM/NBR
Standard: UL213
Working pressure: 2.07MPa / 300PSI
Surface treatment: electrostatics powder painting, galvanization.
Colors: RAL3000, blue, white or as customized.
Bolts and nuts: stainless steel, grade 8.8
All sizes are UL listed and FM approved.

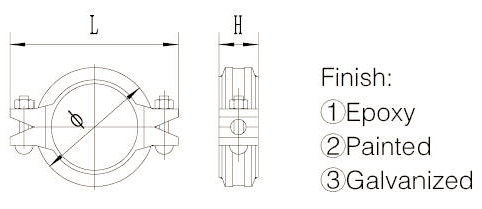

Nominal size | Pipe OD | Working Pressure | Product Dimension (inch / mm) | Bolt/Nut | ||
inch / mm | inch / mm | PSI / MPa | Φ | L | H | |
1 25 | 1.327 33.7 | 300 2.07 | 2.205 56 | 3.78 96 | 1.772 45 | 10*45 |
1 1/4 32 | 1.669 42.4 | 300 2.07 | 2.598 66 | 4.173 106 | 1.772 45 | 10*45 |
1 1/2 40 | 1.9 48.3 | 300 2.07 | 2.835 72 | 4.488 114 | 1.772 45 | 10*45 |
2 50 | 2.375 60.3 | 300 2.07 | 3.189 81 | 4.961 126 | 1.85 47 | 10*50 |
2 1/2 65 | 2.875 73 | 300 2.07 | 3.74 95 | 5.472 139 | 1.85 47 | 10*55 |
3 (OD) 65 | 3 76.1 | 300 2.07 | 3.898 99 | 5.63 143 | 1.85 47 | 10*55 |
3 80 | 3.5 88.9 | 300 2.07 | 4.409 112 | 6.181 157 | 1.89 48 | 10*55 |
4 100 | 4.5 114.3 | 300 2.07 | 5.433 138 | 7.598 193 | 1.969 50 | 12*65 |
5 1/2 (OD) 125 | 5.5 139.7 | 300 2.07 | 6.535 166 | 8.701 221 | 1.969 50 | 12*70 |
6 1/2 (OD) 150 | 6.5 165.1 | 300 2.07 | 7.598 193 | 9.843 250 | 2.008 51 | 12*70 |
6 150 | 6.625 168.3 | 300 2.07 | 7.717 196 | 10.079 256 | 2.008 51 | 12*70 |
8 200 | 8.625 219.1 | 300 2.07 | 10 254 | 12.677 322 | 2.48 63 | 16*85 |
10 250 | 10.75 273 | 300 2.07 | 12.323 313 | 15.433 392 | 2.52 64 | 20*100 |
12 300 | 12.75 323.9 | 300 2.07 | 14.409 366 | 17.52 445 | 2.598 66 | 20*110 |
Nominal size | Pipe OD | Working Pressure | Product Dimension (inch / mm) | Bolt/Nut | ||
inch / mm | inch / mm | PSI / MPa | Φ | L | H | |
1 25 | 1.327 33.7 | 300 2.07 | 2.205 56 | 3.78 96 | 1.772 45 | 10*45 |
1 1/4 32 | 1.669 42.4 | 300 2.07 | 2.598 66 | 4.173 106 | 1.772 45 | 10*45 |
1 1/2 40 | 1.9 48.3 | 300 2.07 | 2.835 72 | 4.488 114 | 1.772 45 | 10*45 |
2 50 | 2.375 60.3 | 300 2.07 | 3.189 81 | 4.961 126 | 1.85 47 | 10*50 |
2 1/2 65 | 2.875 73 | 300 2.07 | 3.74 95 | 5.472 139 | 1.85 47 | 10*55 |
3 (OD) 65 | 3 76.1 | 300 2.07 | 3.898 99 | 5.63 143 | 1.85 47 | 10*55 |
3 80 | 3.5 88.9 | 300 2.07 | 4.409 112 | 6.181 157 | 1.89 48 | 10*55 |
4 100 | 4.5 114.3 | 300 2.07 | 5.433 138 | 7.598 193 | 1.969 50 | 12*65 |
5 1/2 (OD) 125 | 5.5 139.7 | 300 2.07 | 6.535 166 | 8.701 221 | 1.969 50 | 12*70 |
6 1/2 (OD) 150 | 6.5 165.1 | 300 2.07 | 7.598 193 | 9.843 250 | 2.008 51 | 12*70 |
6 150 | 6.625 168.3 | 300 2.07 | 7.717 196 | 10.079 256 | 2.008 51 | 12*70 |
8 200 | 8.625 219.1 | 300 2.07 | 10 254 | 12.677 322 | 2.48 63 | 16*85 |
10 250 | 10.75 273 | 300 2.07 | 12.323 313 | 15.433 392 | 2.52 64 | 20*100 |
12 300 | 12.75 323.9 | 300 2.07 | 14.409 366 | 17.52 445 | 2.598 66 | 20*110 |
