Grooved flange adaptor

Grooved flange adapters ANSI Class 150 are widely used to connect steel pipes and other equipments with flanges in fire protection system, potable water supply system, municipal construction, mine, chemical factory and other occasions when steel pipes used.

Material of body: ductile cast iron (ASTM A536, Grade: 65-45-12)

Standard: UL213

Working pressure: 2.07MPa / 300PSI

Surface treatment: electrostatics powder painting, galvanization.

Color: RAL3000, RAL5015 or as customized.

All sizes are UL listed and FM approved

Nominal size		Pipe O.D.		Working pressure
mm	in	mm	in	PSI	MPa
50	2	60.3	2.375	300	2.07
65	2 1/2	73	2.875	300	2.07
80	3	88.9	3.5	300	2.07
100	4	114.3	4.5	300	2.07
125	5	141.3	5.563	300	2.07
150	6	168.3	6.625	300	2.07
200	8	219.1	8.625	300	2.07
250	10	273	10.75	300	2.07
300	12	323.9	12.75	300	2.07

Nominal size		Pipe O.D.		Working pressure
mm	in	mm	in	PSI	MPa
50	2	60.3	2.375	300	2.07
65	2 1/2	73	2.875	300	2.07
80	3	88.9	3.5	300	2.07
100	4	114.3	4.5	300	2.07
125	5	141.3	5.563	300	2.07
150	6	168.3	6.625	300	2.07
200	8	219.1	8.625	300	2.07
250	10	273	10.75	300	2.07
300	12	323.9	12.75	300	2.07

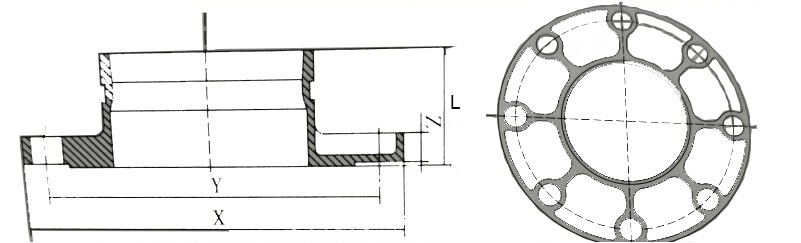

Dimensions
L		X		Y		Z
mm	in	mm	in	mm	in	mm	in
60	2.362	160	6.3	120.7	4.75	15	0.59
60	2.362	180	7.08	139.7	5.5	15	0.59
65	2.559	200	7.87	152.5	6	15	0.59
70	2.756	228	8.97	190.5	7.5	16	0.63
70	2.756	250	9.84	216	8.5	17	0.67
70	2.756	282	11.1	241.5	9.5	17	0.67
75	2.952	340	13.39	298.5	11.75	19	0.74
85	3.346	405	15.94	362	14.25	21	0.82
85	3.346	482	18.97	432	17	22	0.86
