Ductile cast iron check valves are double flanged, resilient seated. They are widely used to prevent backflow of water by rubber-flap in potable water system or sewage system.
Processing standard: DIN EN 12334
Face to face according to: DIN EN 558-1 series 48
Flange standard: DIN EN 1092-2
Valve body and seat pressure standard: DIN EN 1563
Material standard: KTW and DVGW W270

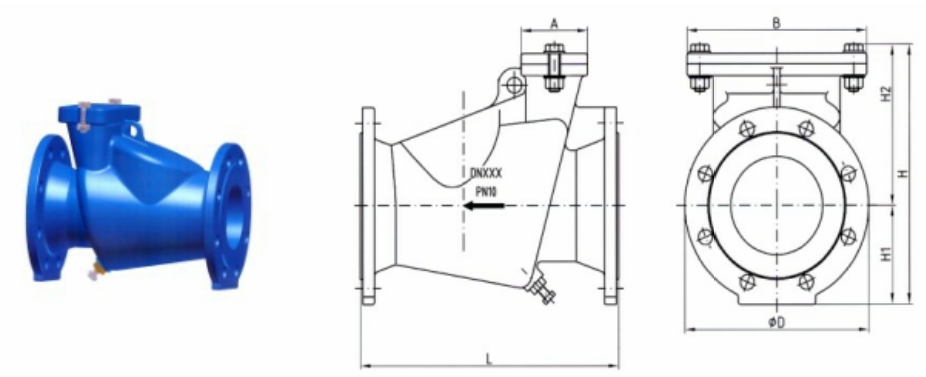

Product parameters
Size DN mm | Face to face length acc. to DIN EN 558-1 Series 48 L mm | Flange Dia D mm | Dimension | Weight kg | Volume m³ | ||||
A mm | B mm | H1 mm | H2 mm | H mm | |||||
40 | 180 | 150 | 60 | 130 | 75 | 108 | 183 | 10 | 0.01 |
50 | 200 | 165 | 66 | 141 | 82 | 116 | 198 | 11 | 0.01 |
65 | 240 | 185 | 76 | 156 | 93 | 129 | 222 | 13 | 0.01 |
80 | 260 | 200 | 81 | 171 | 100 | 141 | 241 | 17.5 | 0.02 |
100 | 300 | 220 | 82 | 200 | 110 | 164 | 274 | 29.4 | 0.02 |
125 | 350 | 250 | 90 | 244 | 125 | 204 | 329 | 35.5 | 0.03 |
150 | 400 | 285 | 88 | 280 | 142 | 223 | 365 | 54.6 | 0.05 |
200 | 500 | 340 | 149 | 313 | 170 | 260 | 430 | 78 | 0.09 |
250 | 600 | 395 | 198 | 386 | 200 | 318 | 518 | 125 | 0.13 |
300 | 700 | 445 | 206 | 450 | 228 | 352 | 580 | 161 | 0.19 |
Product parameters
Size DN mm | Face to face length acc. to DIN EN 558-1 Series 48 L mm | Flange Dia D mm | Dimension | Weight kg | Volume m³ | ||||
A mm | B mm | H1 mm | H2 mm | H mm | |||||
40 | 180 | 150 | 60 | 130 | 75 | 108 | 183 | 10 | 0.01 |
50 | 200 | 165 | 66 | 141 | 82 | 116 | 198 | 11 | 0.01 |
65 | 240 | 185 | 76 | 156 | 93 | 129 | 222 | 13 | 0.01 |
80 | 260 | 200 | 81 | 171 | 100 | 141 | 241 | 17.5 | 0.02 |
100 | 300 | 220 | 82 | 200 | 110 | 164 | 274 | 29.4 | 0.02 |
125 | 350 | 250 | 90 | 244 | 125 | 204 | 329 | 35.5 | 0.03 |
150 | 400 | 285 | 88 | 280 | 142 | 223 | 365 | 54.6 | 0.05 |
200 | 500 | 340 | 149 | 313 | 170 | 260 | 430 | 78 | 0.09 |
250 | 600 | 395 | 198 | 386 | 200 | 318 | 518 | 125 | 0.13 |
300 | 700 | 445 | 206 | 450 | 228 | 352 | 580 | 161 | 0.19 |
Range of applicable: potable water
Size mm DN | Pressure rating in bar PN | Hydro test pressure in bar | Admissible working pressure in bar up to 70℃ | |||
Body | Seat | |||||
40-300 | 10 | 15 | 10 | 10 |
Material list:
Part name | Material |
Valve Body | Ductile cast iron (Tensile strength ≥ 450 MPa, elongation: 15%) |
Valve Cover | Ductile cast iron (Tensile strength ≥ 450 MPa, elongation: 15%) |
Flap | Ductile cast iron (Tensile strength ≥ 450 MPa, elongation: 15%) |
Cover gasket | EPDM or NBR |
Bolts and nuts | Stainless steel |
Surface treatment | Epoxy powder coating |
